Which container formats does Debiline accept?

From a 200 ml bottle to a 50-litre jerrican: bottles, jugs, drums and jerricans. That is its main strength. Changeover takes under 15 minutes from the touch screen with no complex tooling: the operator selects the recipe and the machine adjusts its settings.

How does the machine stop the product foaming or overflowing?

Through bottom-up filling. The nozzles descend mechanically to the bottom of the container, filling starts at high speed, then the nozzles rise in sync with the liquid level. Turbulence is removed, and so is foam. At the end of the stroke the machine slows down to trim the level to the millilitre and the nozzle closes through a drip-free system.

Which dosing technology should be chosen for a given product?

Three technologies are available. The mass flow meter weighs the product on the fly: ±0.5% accuracy, no retention zone, and it is the choice in cosmetics and food for hygiene reasons. The electromagnetic flow meter measures the volume of conductive fluids (water-based products) to ±1%. Volumetric pump dosing suits chemical and highly viscous products. The choice is settled during the product audit, before ordering.

What does cleaning between two different products involve?

The machine has clean-in-place (CIP). The PLC runs an automatic rinse cycle across the whole pipework and the flow meters — hot water or cleaning solutions — with no parts to dismantle. Dead legs and retention zones were removed at design stage, which makes the cycle effective even in food applications.

Can Debiline package flammable products?

Yes, in the explosion-proof ATEX version. That configuration adds ATEX-certified components, vapour extraction at the filling head and earth bonding of the whole assembly. It is used for solvents, thinners and alcohol-based products. The ATEX certificate is supplied with the manufacturer file.

Packaging machine

SPC MACHINES

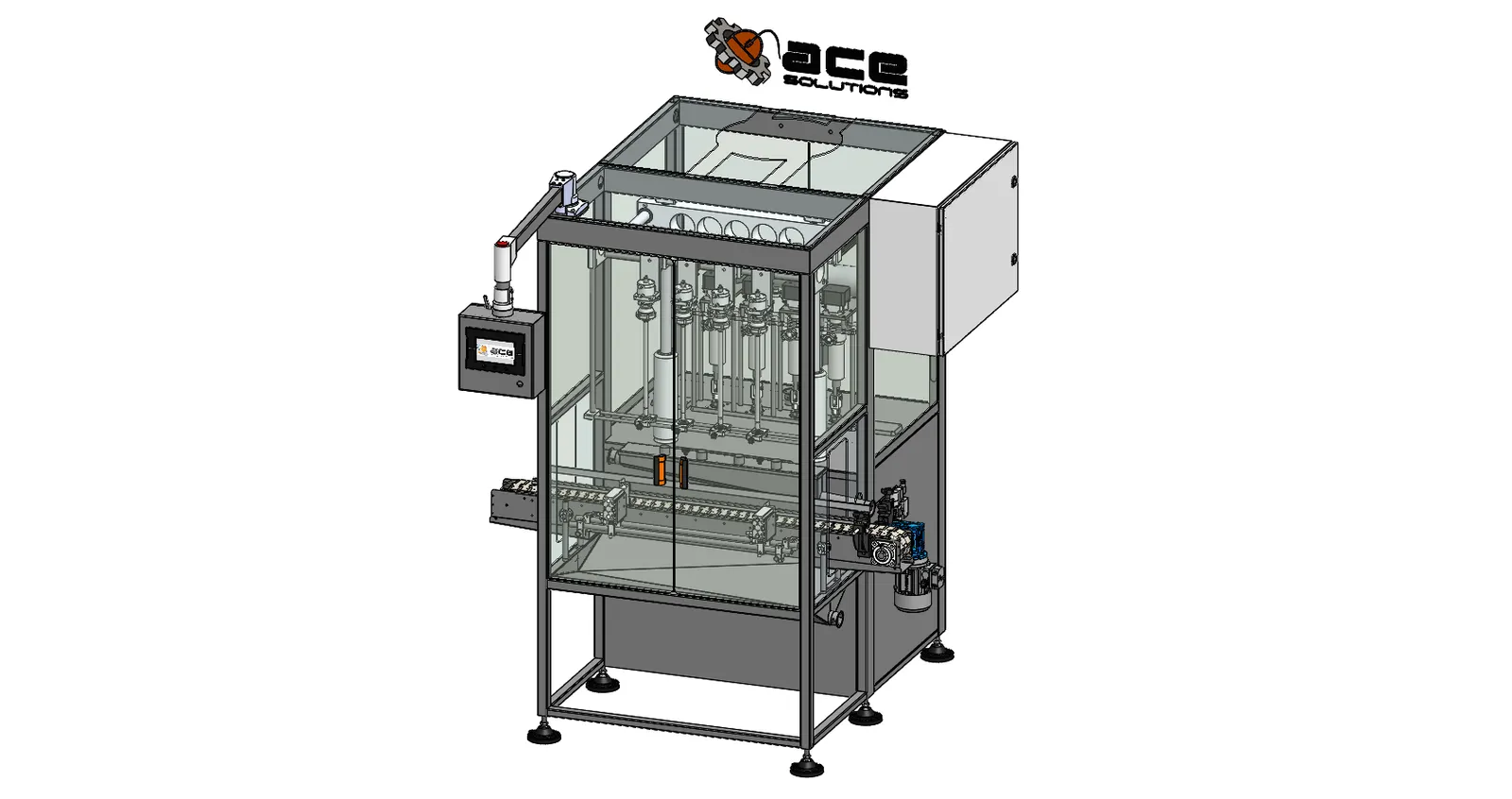

Automatic Inline Filling Machine 200 ml to 50 L | Debiline

Automatic inline filling machine for fluid, viscous or foaming liquids, from a 200 ml bottle to a 50-litre jerrican. Bottom-up filling and integrated CIP.

Who is it for?

DEBILINE is aimed at medium and large-run packaging sites in chemicals, cosmetics, food and pharmaceuticals, filling liquid to semi-liquid products — foaming, oily, viscous or alcohol-based — into containers ranging from a 200 ml bottle to a 50-litre jerrican. It is the machine for multi-format lines, where a single piece of equipment must move from small bottle to large drum without tying up production.

How does Debiline work?

Filling is inline and PLC-driven from a touch screen: the conveyor brings containers in, a group is isolated under the nozzles, then dosed. The number of nozzles (2, 4, 6 or 8) sets the batch size handled per cycle. The cycle runs in 5 steps:

Container indexing — mechanical separators isolate a group of containers on the motorised conveyor
Locking under the nozzles — pneumatic stops immobilise the perfectly aligned group
Precision dosing — mass, electromagnetic or volumetric flow meter depending on the product
Bottom-up filling — nozzles dive to the bottom of the container and rise with the liquid level, then close drip-free
Discharge — filled containers move on along the conveyor to the next station

Key features

Up to 120 containers/min, i.e. around 8,000 units/hour depending on configuration
Formats from 200 ml to 50 litres: bottles, jugs, drums, jerricans
Three dosing technologies — mass ±0.5%, electromagnetic ±1%, volumetric
Bottom-up filling: diving nozzles rising with the level, no foam and no splashing
Drip-free nozzles: clean product cut-off, no run-down on the neck
Format changeover in under 15 minutes, by selecting a recipe on the touch screen
Integrated CIP: automatic circuit rinse between products, with no disassembly
ATEX version available, with vapour extraction at the nozzles

Specifications

Technical specifications

Throughput: up to 120 containers/min (≈ 8,000 units/h depending on configuration)
Accepted formats: from 200 ml to 50 L — bottles, jugs, drums, jerricans
Number of nozzles: 2, 4, 6 or 8 depending on configuration
Dosing technologies: mass, electromagnetic or volumetric / pump flow meter
Dosing accuracy: ±0.5% (mass), ±1% (electromagnetic)
Filling mode: bottom-up (diving nozzles), high speed then slow top-up
Format changeover: < 15 min, by recipe on the touch screen, no tooling
Cleaning: automatic CIP of pipework and flow meters, with no disassembly
Direct product-contact materials: 316L stainless steel, PTFE or chemically inert elastomer seals
HMI: industrial PLC + touch screen, recipe management
ATEX option: explosion-proof version with vapour extraction at the nozzles

Compliance

Machinery Directive 2006/42/EC
CE marking (Machinery, EMC, Low Voltage)
ATEX 2014/34/EU (optional explosion-proof version)
Design compliant with GMP
ISO 22716 — Good Manufacturing Practices for Cosmetics
FDA 21 CFR Part 11 (data integrity, optional)
316L stainless steel product-contact parts, PTFE seals
IQ/OQ qualification file delivered with the machine
FAT/SAT documentation + "as-built" file
Designed and manufactured in France

Use cases

Typical use cases

Chemicals, flammable and solvent-based products: explosion-proof ATEX configuration for packaging thinners, solvents and crop-protection products.
Chemicals, viscous or corrosive fluids: volumetric dosing, 316L stainless steel and PTFE seals, with corrosive-vapour extraction at the filling head.
Food and beverage: vegetable oil drums, syrups and sauces, with CIP between recipes and a retention-free circuit.
Cosmetics and household care: shower gels, liquid detergents and foaming household products, bottom-up filled to avoid any overflow.
Pharmaceuticals: syrups and antiseptic solutions in large volumes, with traceability of production parameters.
