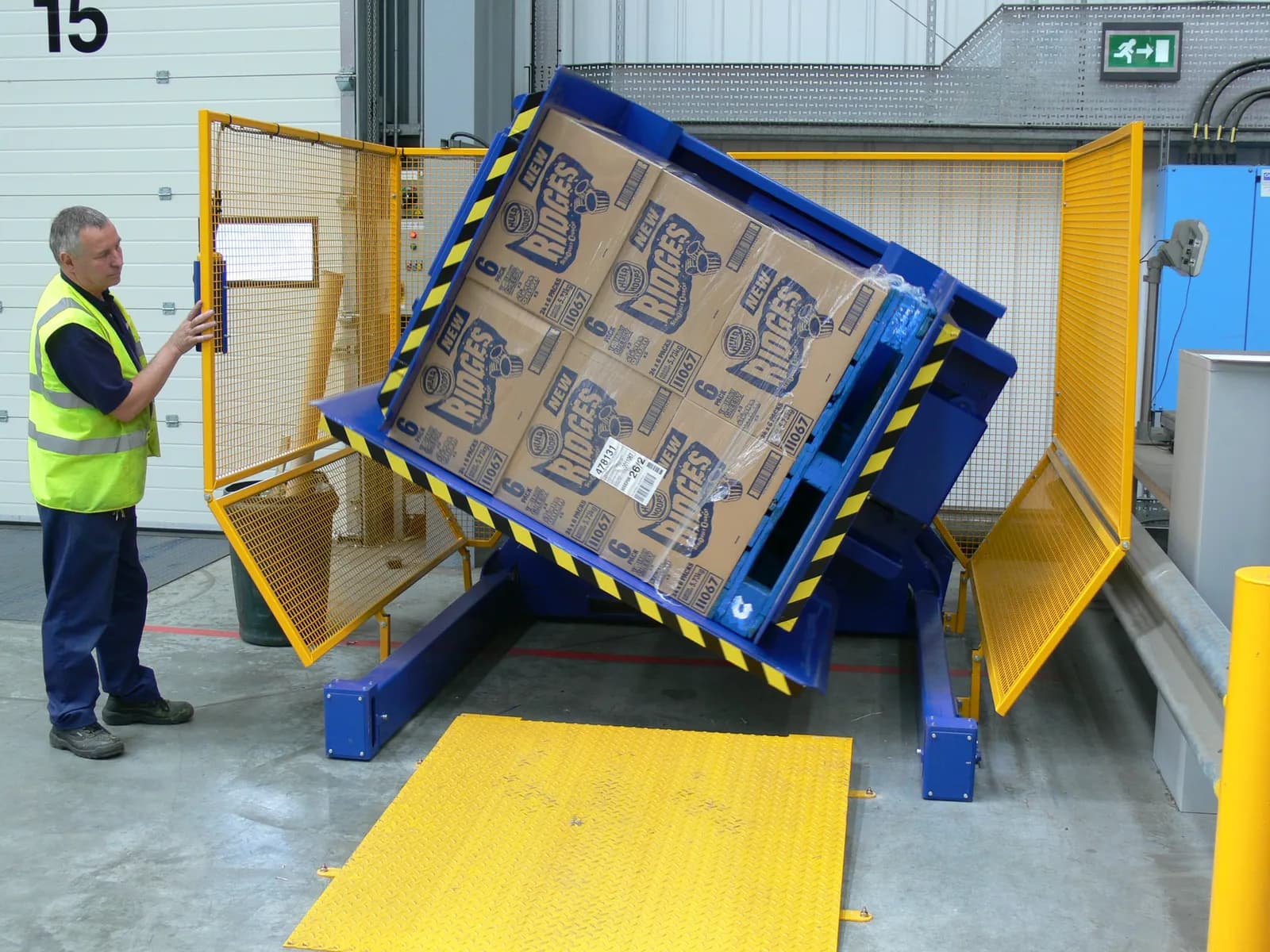

Pallet Inverter DD1.25 180°
The lightest pallet inverter with multiple loading options.
DD1.25 – Versatile solution for handling light loads
The DD1.25 is a versatile piece of equipment designed for handling and loading light loads of up to 1,250 kg. Compact and easy to transport, it is particularly well suited to companies looking for a flexible solution for their material handling operations.
Compatible with standard 800 × 1,200 mm and 1,000 × 1,200 mm pallets, the DD1.25 features two clamping platforms and allows pallets to be loaded from as low as 110 mm above floor level.
Its design allows for multiple loading methods: pallets can be loaded using a forklift truck, stacker or pallet truck, thanks to its loading ramp. This versatility makes it easy to integrate into a wide range of industrial and logistics environments.
The DD1.25 is equipped with hold-to-run push-button controls, ensuring simple and controlled operation. For applications requiring a higher level of automation, the machine can also be configured for fully automatic operation.
Safety is integrated into the design, with mesh guards at the rear and on the sides of the machine. Additional options are available, including mesh guard extensions and light curtains.
The DD1.25 is therefore an ideal solution for companies looking for versatile, compact and flexible equipment for handling light loads, with multiple loading options.
Would you like to learn more about the DD1.25 or find out whether it is suitable for your application? Contact us for more information about this model.
Technical specifications
- Reversal
- 180°
- Any loading method
- Forklift truck, stacker, pallet truck
Typical use cases
- Use Case – Logistics and Material Handling Company A company specializing in logistics, storage, or order picking may need to handle relatively light loads on a daily basis, while also requiring a versatile solution for loading different types of pallets. For example, a company handling pallets weighing between 500 and 1,000 kg can use the DD1.25 for its loading and unloading operations. With a maximum load capacity of 1,250 kg, it is perfectly suited to this type of application, while remaining lightweight and easy to move. One of the main advantages of the DD1.25 is its loading versatility. Depending on the equipment available on site, pallets can be loaded using a forklift truck, a stacker, or directly with a pallet truck, thanks to its loading ramp. This means the company does not have to rely on a single type of handling equipment. The DD1.25 is compatible with standard 800 × 1,200 mm and 1,000 × 1,200 mm pallets and allows loading from as low as 110 mm above floor level, thanks to its double clamping platforms. For regular use, the hold-to-run push-button controls provide simple and safe operation. The DD1.25 can also be configured in fully automatic mode, making it easier to integrate into a production process or repetitive material-handling operation. With its rear and side mesh guards included as standard, the DD1.25 provides a complete solution for companies looking for a compact, lightweight, versatile machine that can accommodate different loading methods. Looking for a solution to handle your light loads while retaining the ability to load with a pallet truck? Contact us for more information about the DD1.25.
