V-Changer
V-shaped tilting for controlled load handling.

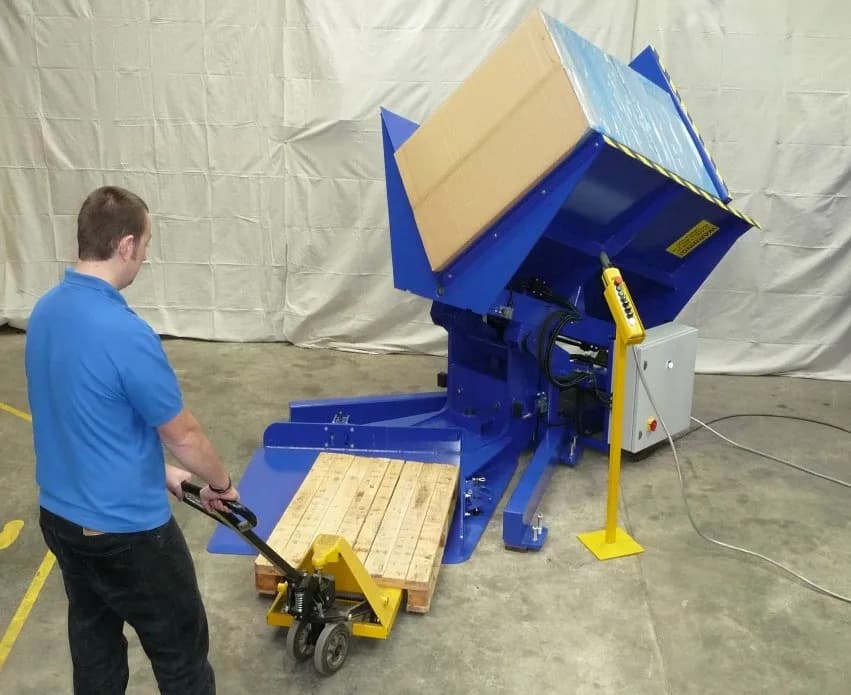

Floor-Level Pallet Inverter with V-Shaped Tilting
Our floor-level pallet inverter is designed to facilitate pallet exchange while ensuring secure load retention.
Thanks to its V-shaped tilting system, the load can be tilted up to 110°, with an additional 20° inclination towards the machine body. This configuration effectively keeps the load secured between the V-shaped walls throughout the entire operation.
With a 1,400 kg capacity and a clamp opening range from 600 to 2,050 mm, this industrial pallet inverter can handle loads of various dimensions. Its floor-level loading system, with no ramp required, facilitates handling operations and pallet exchange.
Equipped with a hydraulic pallet gripping system and integrated safety devices, this machine provides an effective solution for industrial environments requiring pallet exchange, load transfer, or pallet inversion operations.
Key Features
- V-shaped tilting for secure load retention
- Capacity up to 1,400 kg
- Floor-level loading
- Handles pallets up to 1,200 x 1,200 mm
- Clamp opening from 600 to 2,050 mm
- Semi-automatic control and integrated safety devices
Technical specifications
- Tilter
- V-shaped tilting
- Floor-level loading
- Pallet truck
Typical use cases
- Use Case – Pallet Exchange Without Unpacking A company regularly needs to replace damaged pallets without unloading or repacking the loads. The pallet tilter securely grips the load directly at floor level, holds it in place using the V-shaped tilting system, and then tilts the load to allow the original pallet to be removed and replaced with a new one. This solution reduces manual handling operations, minimizes the risks associated with load handling, and enables pallet exchange to be carried out quickly, safely, and efficiently. Example: Replacing a damaged wooden pallet underneath a load weighing up to 1,400 kg, without unloading the product.
Our expertise enables us to offer a complete solution.
From technical expertise of your installations to the design of your future production tools.
