90° Plate Tilter: The Industrial Solution for Sorting and Replacing Plates.
90° Plate Stack Tilter / Sorter – Plate Handling and Sorting

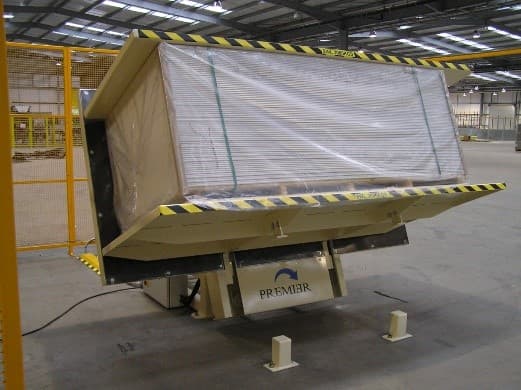

The 90° plate stack tilter / sorter is an industrial solution designed to facilitate the handling, sorting and replacement of defective plates within a stack. Particularly suitable for plasterboards, metal sheets, panels and other plate-type products, this equipment allows a load to be tilted through 90° to make the products easily accessible at operator height.
Thanks to its 90° hydraulic tilting system, the tilter allows individual plates within a stack to be accessed, making quality control, sorting and replacement of non-conforming plates quick and efficient.
A Plate Tilter Designed for Sorting and Replacement
The plate stack tilter allows a complete load to be tilted in order to facilitate access to the individual plates. Once the stack has been tilted, the operator can directly access the plates and easily remove or replace a defective product.
This solution is particularly suitable for applications requiring regular plate sorting, quality control and replacement of non-conforming plates.
The manipulator design can be adapted to the dimensions, weight and type of load according to the specific requirements of each application.
Operation of the Plate Tilter / Sorter
The machine is simple and safe to operate. The load is loaded using a forklift truck or overhead crane and is then secured between the hydraulic clamping plates.
The production cycle includes the following operations: Loading of the plate stack. Loading of the tilter using a forklift truck. Resetting of the safety devices. Closing of the clamping plates. Clamping of the stack with adjustable pressure according to the product. Tilting of the load through 90°. Sorting and replacement of plates.
Once the stack has been positioned at 90°, the plates can be opened to the extent required by the operator. The plates are then accessible at operator height, making inspection and handling easier.
The operator can therefore: Identify defective or non-conforming plates. Remove a damaged plate. Replace the defective plate. Carry out sorting and quality control operations. Returning the load to its original position
After the intervention:
Resetting of the safety devices. Closing of the plates. Returning the load to its original position through 90°. Complete opening of the plates. Removal of the stack using a forklift truck. Technical Specifications
Model: 90° Plate Stack Tilter / Sorter Application: Plasterboards and similar products Rotation: 90° Capacity: Up to 2,000 kg
Custom-Made Plates Depth: 1,220 mm Width: 3,000 mm Maximum opening: 1,500 mm Minimum opening: 500 mm Double hydraulic clamping system
The plates can be adapted to the characteristics of the load and the dimensions of the plates to be handled.
Loading and Unloading
Loading is carried out at a height of approximately 450 mm above floor level, exclusively using a forklift truck or overhead crane.
The polished rear wall facilitates the sliding of the plates during loading and unloading operations, while reducing the risk of marking or damaging the products.
Electro-Hydraulic System
The tilter is equipped with an electro-hydraulic power unit providing the various machine movements.
Power supply: 400 V three-phase Motor power: 4 kW 1 hydraulic cylinder for the tilting movement 1 hydraulic cylinder for the clamping plates 1 geared motor for rotation
The machine is operated manually using a maintained-pressure push-button control box mounted on a pedestal, allowing the operator to control the different stages of the cycle.
Adjustable Hydraulic Clamping
The clamping pressure can be adjusted according to the product, from 30 to 150 bar.
A pressure relief valve prevents the preset pressure from being exceeded, allowing the clamping force to be adapted to the characteristics of the stack being handled.
Machine Safety
Operator safety is a key element in the design of the plate tilter / sorter.
The equipment is fully enclosed by a 2,000 mm-high steel mesh safety enclosure.
The machine is equipped with: A light curtain at the front to secure the forklift loading area. A side light curtain protecting operator access areas. Two secured access points allowing loading and unloading from the front and from one side.
These safety devices ensure secure tilting, sorting and plate replacement operations.
A Design Adapted to Plate Handling
The support plate for the returned stack is specially designed to facilitate handling operations and protect operators.
It is manufactured without any protrusions or sharp edges, helping to reduce risks during operations on the plates.
Its surface has a fine polished finish without paint, ensuring smooth sliding of the plates while preventing any marking or damage to the products.
Once the stack has been tilted, its height also allows operators to work at an ergonomic height, making inspection, sorting and plate replacement operations easier.
Dimensions and Floor Fixing Overall dimensions: Width: 5,200 mm Depth: 5,400 mm Height: 2,800 mm
The machine is fixed to the floor using anchor bolts.
Industrial Finish
The structure is protected against corrosion with:
2 coats of zinc primer. 1 high-quality two-component acrylic epoxy finishing coat. Finish colours: Yellow RAL 1018 Blue RAL 5002 Advantages of the Plate Stack Tilter / Sorter
The 90° plate tilter provides an efficient solution for handling and inspecting plate-type products.
Its main advantages include: Tilting of plate stacks through 90°. Easy access to plates at operator height. Fast sorting of non-conforming products. Easy replacement of defective plates. Adjustable hydraulic clamping. Suitable for plasterboards and other similar products. Loading and unloading by forklift truck or overhead crane. Safe design with a mesh safety enclosure and light curtains. Polished support plate for smooth sliding of the plates. Design adaptable to the dimensions and characteristics of the load. Capacity of up to 2,000 kg. A Custom-Designed Industrial Solution
Each plate tilting and sorting application may involve specific requirements. For this reason, the tilter design can be adapted to the dimensions of the products, load weight, stack height and handling conditions.
The 90° plate stack tilter / sorter is therefore an industrial solution particularly well suited to sorting, quality control, load tilting and replacement of defective plates, while improving operator ergonomics and safety.
Typical use cases
- Use Case – 90° Plate Stack Tilter for Defective Plate Replacement Optimizing the Sorting and Replacement of Defective Plasterboards A manufacturer of plasterboards wanted to improve product handling and quality control. During the production process, defective or damaged plates could be identified within a complete stack. Previously, operators had to manually access the different plates within the stack, making the sorting and replacement of defective plates time-consuming and physically demanding. To address this challenge, a 90° plate stack tilter / sorter was installed to provide easier access to individual plates and improve workstation ergonomics. The Challenge The customer was looking for a solution capable of: Handling stacks of plasterboards weighing up to 2,000 kg. Tilting a complete stack through 90°. Providing easy access to the plates at operator height. Quickly identifying and replacing defective plates. Preventing damage or marking during plate handling. Ensuring safe operation for operators. Integrating into the available production space while optimizing the workspace. The Solution The 90° plate stack tilter / sorter securely holds the complete stack using its hydraulic clamping system before tilting it through 90°. Once the stack has been tilted, the plates become accessible at an ergonomic working height. The operator can open the clamping plates to the required position, inspect the stack and easily remove the defective plate. The polished support surface allows the plates to slide smoothly without the risk of marking or damaging the products. Once the replacement operation is complete, the stack is clamped again and returned to its original position. Operating Cycle The stack of plasterboards is loaded onto the machine using a forklift truck. The safety system is reset. The hydraulic clamping plates close and secure the stack. The stack is tilted through 90°. The operator opens the clamping plates to the required position. The plates are inspected to identify the defective plate. The non-conforming plate is removed and replaced. The clamping plates are closed again. The stack is returned to its original position. The clamping plates are fully opened. The stack is removed using a forklift truck. Results and Benefits The installation of the 90° plate tilter / sorter provides several operational benefits: Reduced time required to replace defective plates Improved workstation ergonomics Easier access to individual plates Reduced manual handling operations Improved quality control Reduced risk of product damage Safe and controlled tilting operations Handling capacity of up to 2,000 kg Adaptable to different plate dimensions and load configurations A Flexible Solution for Industrial Plate Handling This application demonstrates how a 90° plate stack tilter can simplify the handling, sorting, quality control and replacement of defective plates. The equipment can be designed and customized according to product dimensions, stack weight, plate type, clamping requirements and the available production space. This solution is particularly suitable for industries handling plasterboards, panels, sheets, plates and other plate-type products.
