Dosing component

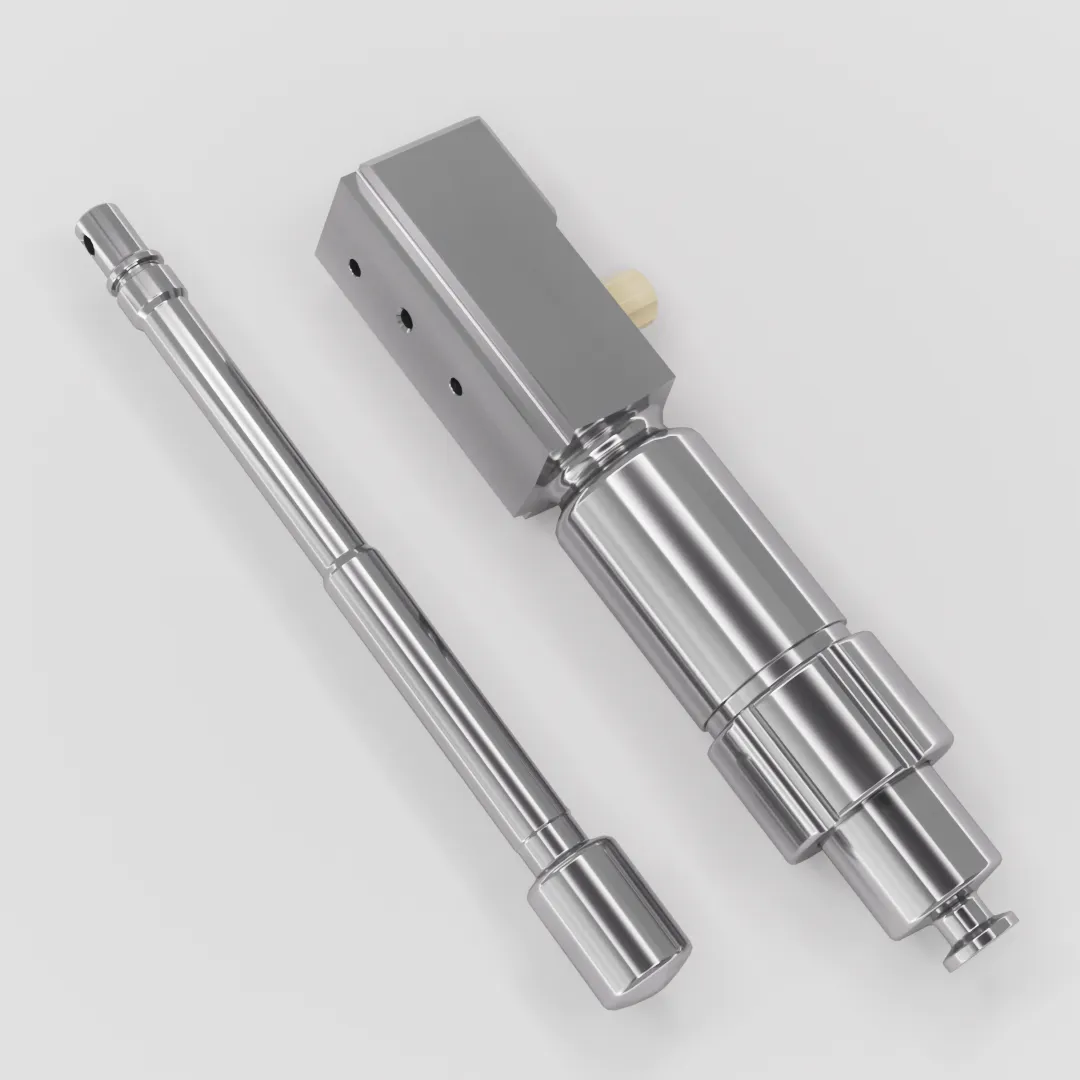

CIP/SIP pumps for other machines
CIP/SIP differential pumps, cleanable without disassembly for other machines.
Our sealless volumetric piston pumps are intended for liquid packaging. They can be used on filling machines of any brand.
They can be used on filling machines of any brand.
Our sealless volumetric piston pumps are intended for liquid packaging. They can be used on filling machines of any brand.
- Custom design
- Hard chrome and PVD CrN coating (high mechanical resistance)
- Single-piece construction in 316L stainless steel or ceramic (ZrO2 Y2O3, ZrO2 MgO zirconia or Al2O3 alumina)
- Positioning the cleaning chamber at the bottom improves pump cleanability
- No assembly or disassembly between cycles: cleaning and sterilisation take place directly on the machine
- Leak test before shipment (Flotest®)
- Compliance with Good Manufacturing Practices (GMP)
- Contamination risk is reduced by 30%: the product touches only two parts during filling, against three or more on other pump types
- Our CIP/SIP pumps accept a wide range of volumes, from 0.005 to over 100 ml
- Combined with the Klyx® isostatic attachment assembly, our pumps ensure sound operation and longer part life
Key features
- Over 50 years of accumulated expertise
- Volumes from 0.01 ml to 100 ml
- Designed to meet FDA and GMP requirements
- Proven accuracy on volumes below 0.1 ml
- Pumps cleanable in place on the machine, without disassembly
- Accuracy of ±0.1 %*
- Single-piece connection design
- Surface finishes validated by qualified manufacturing processes
- Part design adaptable to your filling constraints
Specifications
Technical specifications
- Construction
- Single-piece design available for the connections · FDA-approved materials (316L stainless steel, alumina or zirconia…) · A choice of high-resistance coatings matched to your filling constraints
- Coatings
- Hard chrome · Hard chrome + CrN · Kolsterising® · DLC · Other on request · Surface treatment with no added material
- Materials
- 316L stainless steel · Alumina ceramic · Yttria-stabilised zirconia ceramic · Magnesia-stabilised zirconia ceramic · PEEK · Other on request
- Options
- Groove distribution · Channel distribution · Long guidance (piston and/or barrel) · Lubrication cup(s) · IC Control (alignment checking tool) · Geomax (piston deflection checking tool) · Custom clearance, with product trials run under your production conditions · Other on request
Our expertise enables us to offer a complete solution.
From technical expertise of your installations to the design of your future production tools.
